| Model No. | KY-F-HX-001 | KY-F-HX-002 | KY-F-HX-003 | |
| Rated Power | 60W | 120W | 180W | |
| Input voltage | DC12V | DC24V | ||
| Lithium Battery | 12.8V/60AH | 25.6V/60AH | 25.6V/84AH | |
| Solar Panel | 180W/18V | 240W/36V | 360W/36V | |

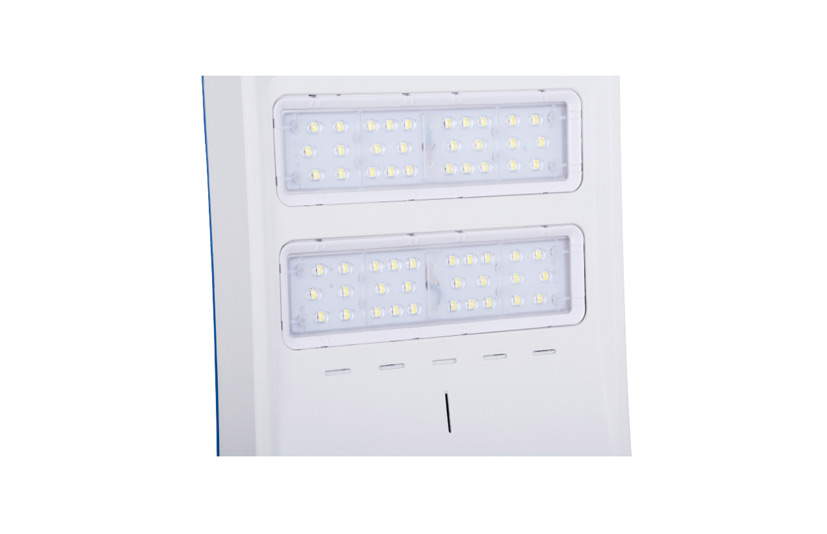

| Light Source | 3030/5050 | |||

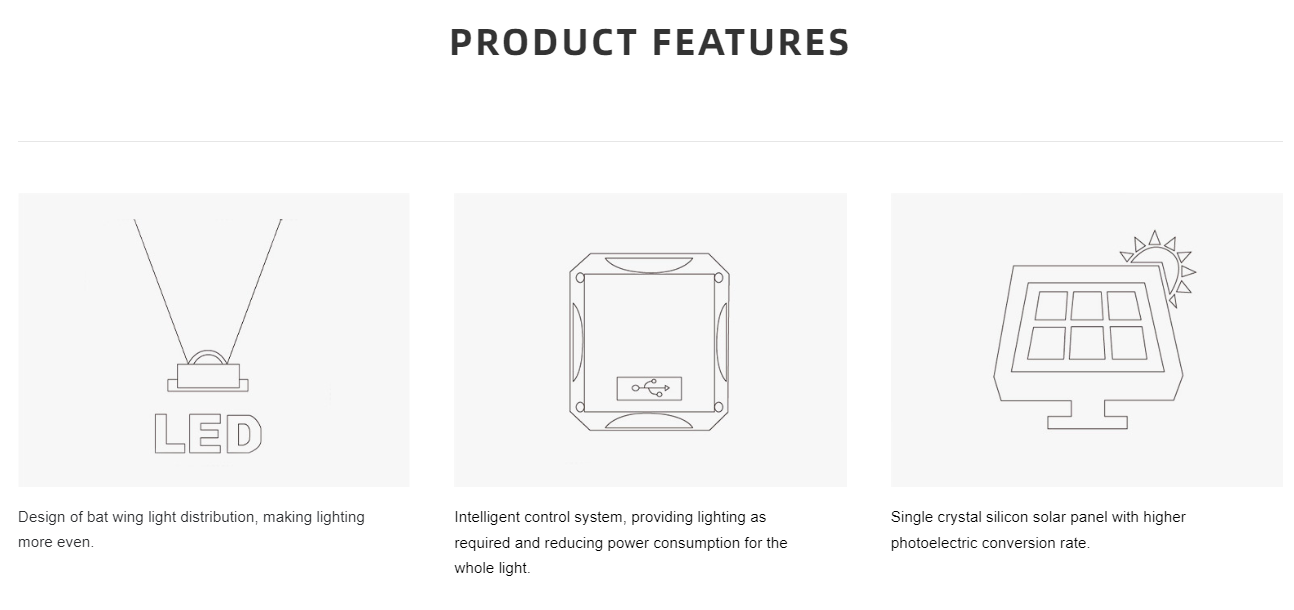

| Light Distribution | Bat-Wing light distribution(150°x75°) | |||
| Light Efficiency | ≥130LM/W | |||
| Color Temperature | 3000K/4000K/5700K/6500K | |||
| CRI | ≥Ra70 | |||
| IP | IP66 | |||
| IK | IK08 | |||
| Working Temperature | -40℃~+60℃ | |||
| Lamp Weight | 4.6kg | 7.6kg | ||
| LED Lifespan | ＞50000H | |||
| Controller | 15A | 20A | ||
| Mount Diameter | φ60mm | |||
| Lamp Dimension | 645×295×144mm | 775×320×150mm | ||
| Packing Dimension | 695×350×200mm （1pc/CTN） | |||
| Suggested Mount Height | 8m~10m | 10m~12m | ||
